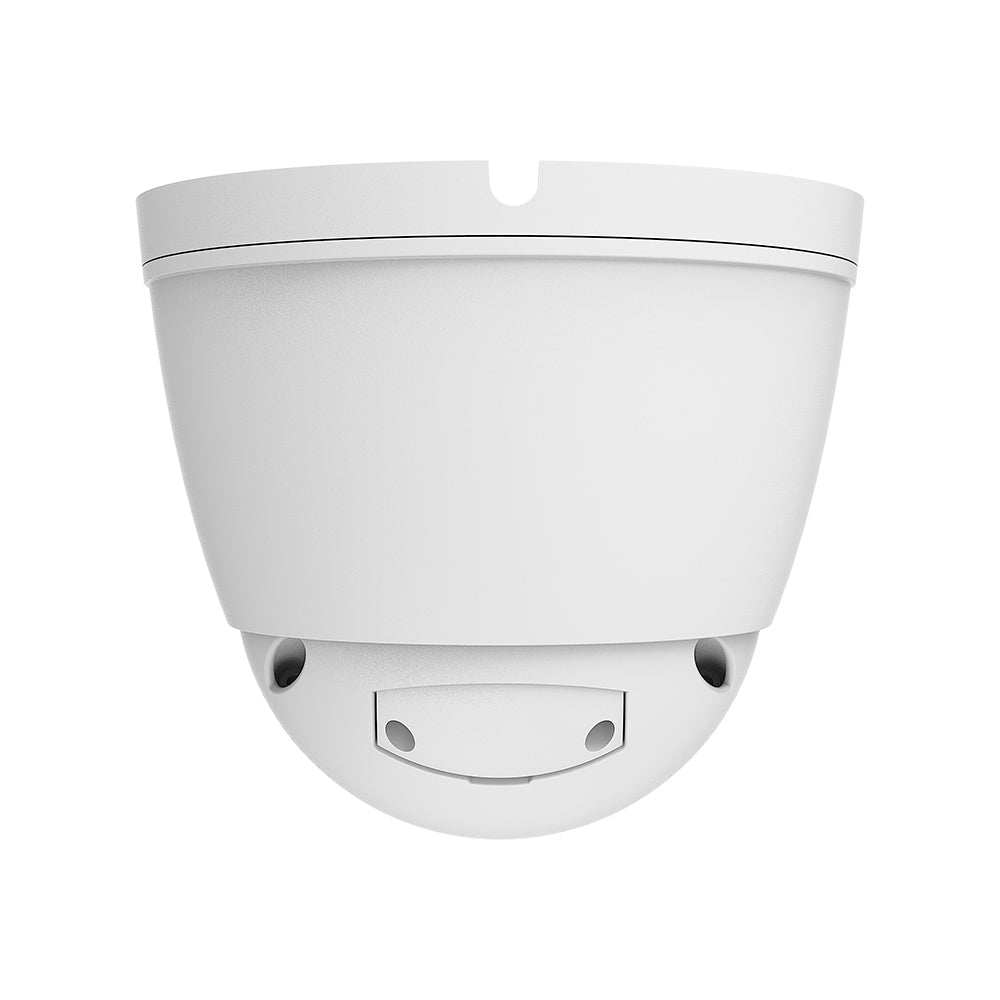

GL-585MMI-S3P1HX
Visible 3.6mm Thermal 3.2mm Thermal & Optical Bi-spectrum Turret Camera
- Single IP solution for dual-spectrum thermal and optical video
- Vanadium oxide uncooled focal plane detector
- Thermal: 256 x 192 resolu on, 12μm≤40mk @ 25°C F1.0
- Optical: 2592 x 1944(5MP)
- Support 3 temperature measurement rule types(spot,line,area)
- Support various AI func ons at thermal & optical both streams
- Support dual image fusion
- Temperature excep on alarm and Fire prevention
- Temperature range: -20°C ~ 550°C
- Support audio and light alarm with built in red and blue flashing light
GL-585MMI-S3P1HX
Visible 3.6mm Thermal 3.2mm Thermal & Optical Bi-spectrum Turret
4K
Solar Power
Edge System
New
PAY WITH EASE
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 256×192 |
| Pixel Interval | 12μm |
| Response Waveband | 8-14μm |
| NETD (Noise Equivalent Temperature Difference) | ≤ 40 mk @ 25℃ F ＃ 1.0, 25Hz |
| Lens (Focal Length) | 3.2mm |
| IFOV | 3.75 mrad |
| Field of View | 56°x42° |
| Min. Focusing Distance | 0.3m |
| DRI Distance Human | Detection: 148m(486ft), Recognition: 36m(118ft), Identification: 21m(69ft) |
| DRI Distance Vehicle | Detection: 435m(1427ft), Recognition: 109m(358ft), Identification: 54m(177ft) |
| VCA Range for Humans | 24m(79ft) |
| VCA Range for Vehicles | 80m(263t) |
| Heat Detection Distance | 25m(82ft) |
| Aperture | F 1.1 |
| Optical Module | |
| Max. Image Resolution | 2592*1944 |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @(F1.6, AGC ON), B/W: 0 @IR ON |
| Shutter Speed | 1/5 s to 1/20,000 s |
| Lens (Focal Length) | 3.6mm |
| Field of View | Horizontal: 81°, Vertical: 57°, Diagonal: 108° |
| WDR | 120dB |
| Day & Night | IR cut filter with auto switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Smart Function | |
| Intelligent Analytics | Optical:Intusion, Region Entrance, Region Exiting, LCD,PD/VD,SOD,CC,CD,QD,Heat MAP,RSD,FD Thermal: Intusion, Region Entrance, Region Exiting, LCD,Fire detection, temperature exception alam, PD/VD |
| Temperature Measurement | Gobal, 12 points, 12 areas, and 12 line). |
| Temperature Range | -20 °C to + 550 °C (-4 °F to + 1022°F) |
| Temperature Accuracy | ± 3°C / 3% |
| Fire Detection | Yes |
| Illuminator | |
| Supplement Light Type | IR and Warm Light |
| Supplement Light Range | Up to 30 m (IR) / 15m (Warm light) |
| IR Wavelenght | 850 nm |
| Smart Supplement Light | Yes |
| Warnning Light | 1 Red & 1Blue flasing light |
| Network | |
| Main Stream | Optiacl: 50Hz@25fps; 5MP(2592x1944),4MP(2592x1520), 3MP(2048x1536),3MP(2304x1296),1080P(1920x1080), 960P(1280*960) 60Hz@30fps; 5MP(2592x1944),4MP(2592x1520), 3MP(2048x1536),3MP(2304x1296),1080P(1920x1080), 960P(1280*960) Thermal: 50Hz/60Hz@25fps; 1280 × 720, 640 x 480 |
| Sub-stream | Optiacl: 50Hz@25fps; 720P(1280x720),VGA(640x480),QVGA(320x240) 60Hz@30fps; 720P(1280x720),VGA(640x480),QVGA(320x240) Thermal: 50Hz/60Hz@25fps; 640 x 480, 320x240 |
| Mobile Stream | Optiacl: 50Hz@25fps; VGA(640x480),QVGA(320x240) 60Hz@30fps; VGA(640x480),QVGA(320x240) Thermal: 50Hz/60Hz@25fps; VGA(640x480),QVGA(320x240) |
| Video Compression | H.265/H.264/MJPEG/H.265+/H.264+ |
| Audio Compression | G.711u/G.711a |
| Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Simultaneous Live View | Up to 14 Steams |
| User/Host Level | 6 users, 2 levels: Administrator, User |
| Security Measures | User authentication (ID and PW), HTTPS encryption, IP address filtering |
| Integration | |
| Alarm Input | 1-ch inputs |
| Alarm Output | 1-ch outputs |
| Alarm Action | SD recording/Alarm output/smart capture/FTP upload/email linkage/audio alarm/Red & Blue flashing light |
| Audio Input | 1-ch inputs / 1 Built-in MIC |
| Audio Output | 1-ch outputs/ 1 Built-in speaker |
| Reset | Yes |
| Communication Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface. |
| SD Memory Card | Built-in micro SD card slot (up to 512 GB) |
| Analog Video Output(BNC) | NA |
| Web Browser | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| General | |
| Menu language | English, German, Italian, French, Portuguese, Spanish, Turkish, Japanese |
| Power | 12 VDC ± 20%, PoE (802.3af) |
| Power Consumption | 12VDC: 7.18W/PoE: 9.04W |
| Working Temperature/Humidity | Temperature: -35 °C to 60 °C (-31 °F to 140 °F) Humidity: 90% or less |
| Protection Level | IP67 |
| Dimensions | φ134.9mm*114.4mm(φ5.31"*4.50") |
| Weight | Approx. 1.25kg(2.76lb) |
| Environment | RoHS2.0 |
| Note： |
| 1.The DRI distances, VCA range and Heat detection are for reference and the performance may vary according to different environment. |
| 2.The DRI distances are calculated according to Johnson's Criteria. |
