GL-328CAG-N1E2BY

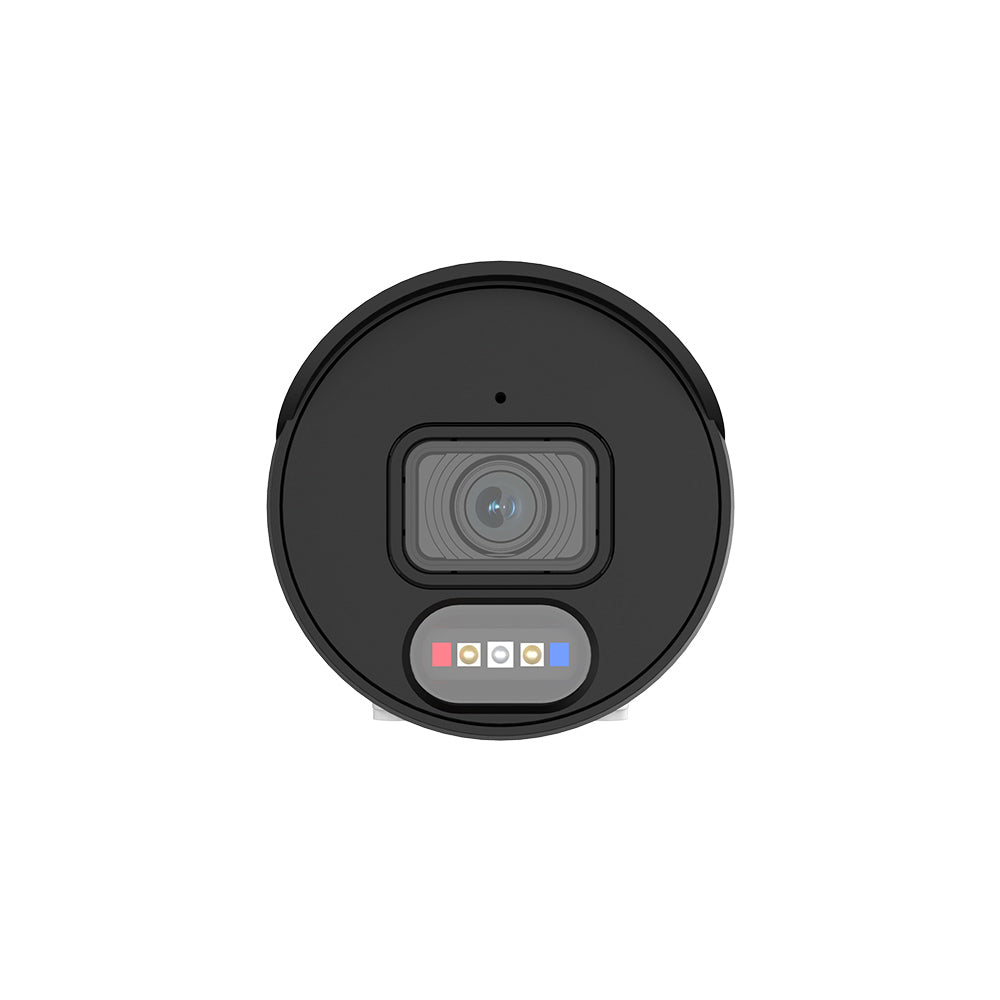

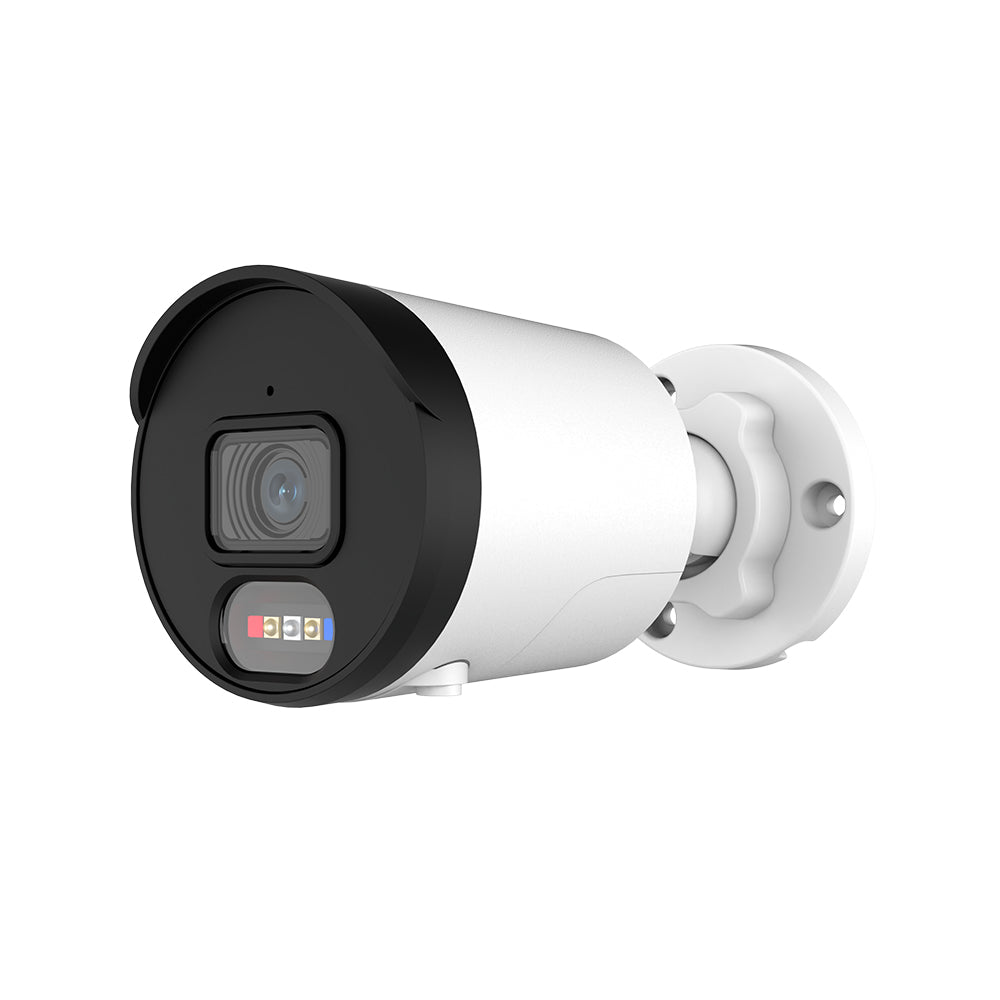

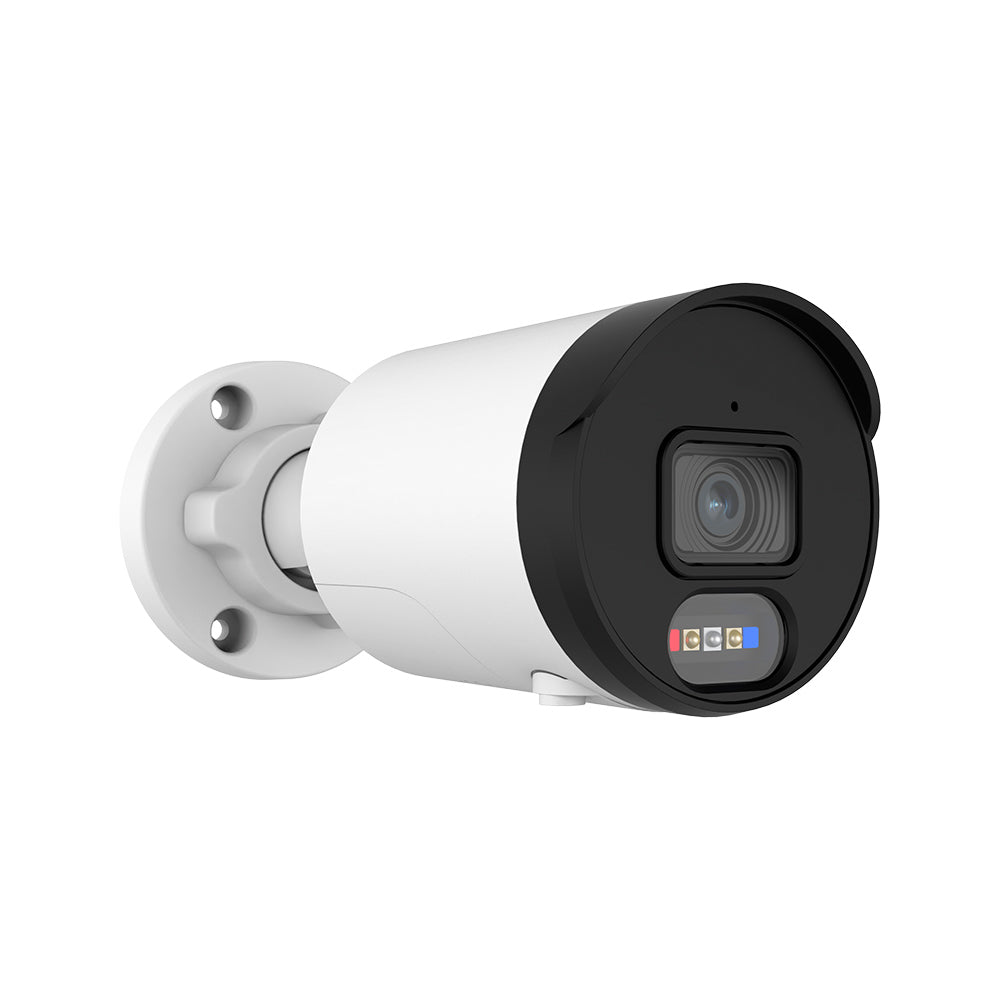

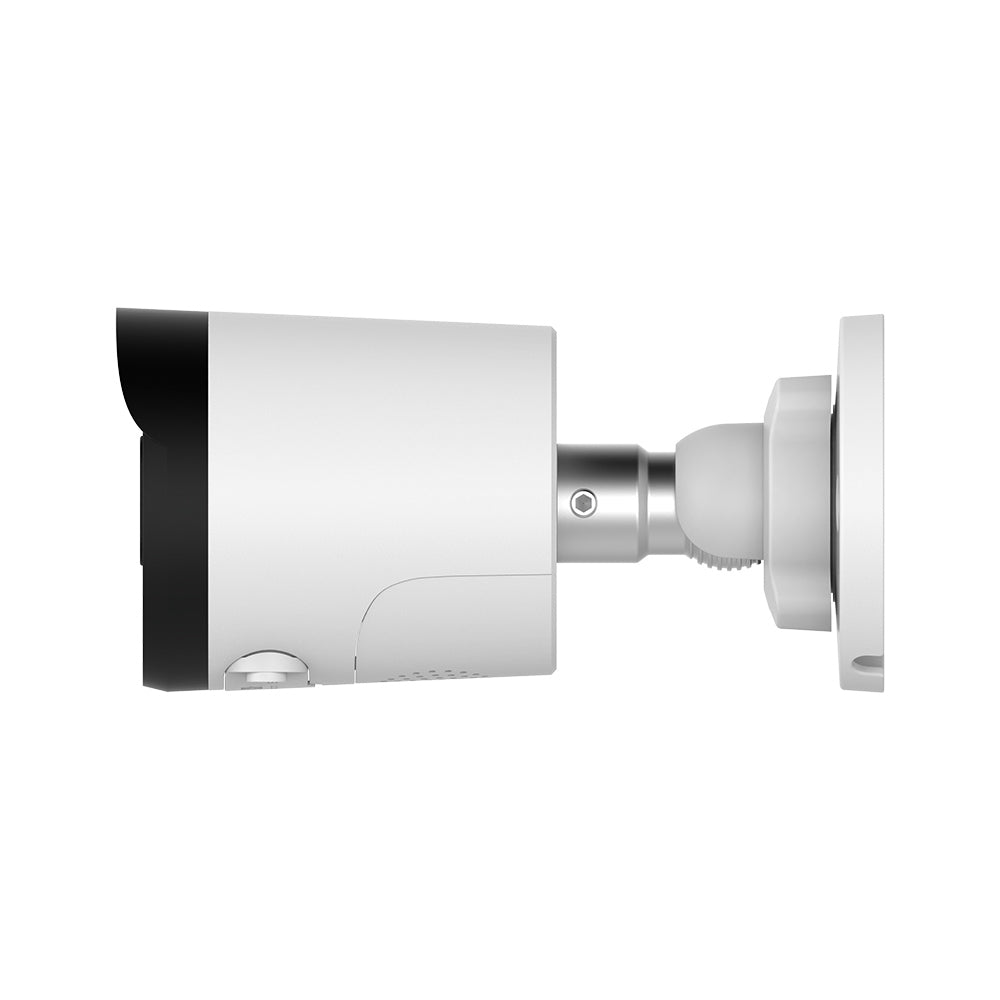

8MP Active Deterrence Fixed Bullet IP Camera
- Providing real-time video output at maximum resolution 3840x2160@15fps
- Supports warm light/infrared dual supplementary light
- Supports backlight compensation, strong light suppression, 3D digital noise reduction, suitable for different video environments
- Supports AI
- Equipped with 1 built-in microphone, 1 built-in speaker
- Designed to meet IP67 dust and water resistance standards
GL-328CAG-N1E2BY
8MP Active Deterrence Fixed Bullet IP Camera
4K
Solar Power
Edge System
New
PAY WITH EASE
| Model name | GL-328CAG-N1E2BY |
| Video | |
| Imaging Device | 1/2.7" |
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length | 2.8mm |
| Max. Aperture Ratio | F No. 1.0 |
| Angular Field of View | Horizontal:110° , Vertical:58°, Diagonal: 133° |
| Min. Object Distance | 2m |
| Lens Type | Fixed(M12) |
| Operational | |
| IR LED | 1 |
| WarmLight | 2 |
| Red Blue Light | 2（1 Red&1 Blue） |
| IR Viewable Length | Up to 25m |
| WarmLight Viewable Length | Up to 20m |
| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode/Day&Night Mode/Schedule |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | NA |
| Audio | Built-in microphone@speaker |
| Custom Voice | NA |
| Hardware Reset | Yes |
| Smart Feature | SMD（Pedestrian&Vehicle）/Perimeter Intrusion / Line Crossing/Intrusion/Region Entrance/Region Exiting |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream 8MP (3840x2160) Sub Stream 1080P(1920x1080) 720P(1280x720) VGA(640x480) |
| Video Quality Adjustment | 512Kbps ~ 6Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv4 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,HTTPS |
| Application Programming Interface | ONVIF |
| Web Viewer | IE10/11 |
| Environmental | |
| Operating Conditions | -35～+60°C/less than ≤ 90% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | DC12V/PoE(IEEE802.3af) |
| Power Consumption | DC12V: max 7.7W; PoE（48V): max 8.9W |
| Mechanical | |
| Material | Metal |
