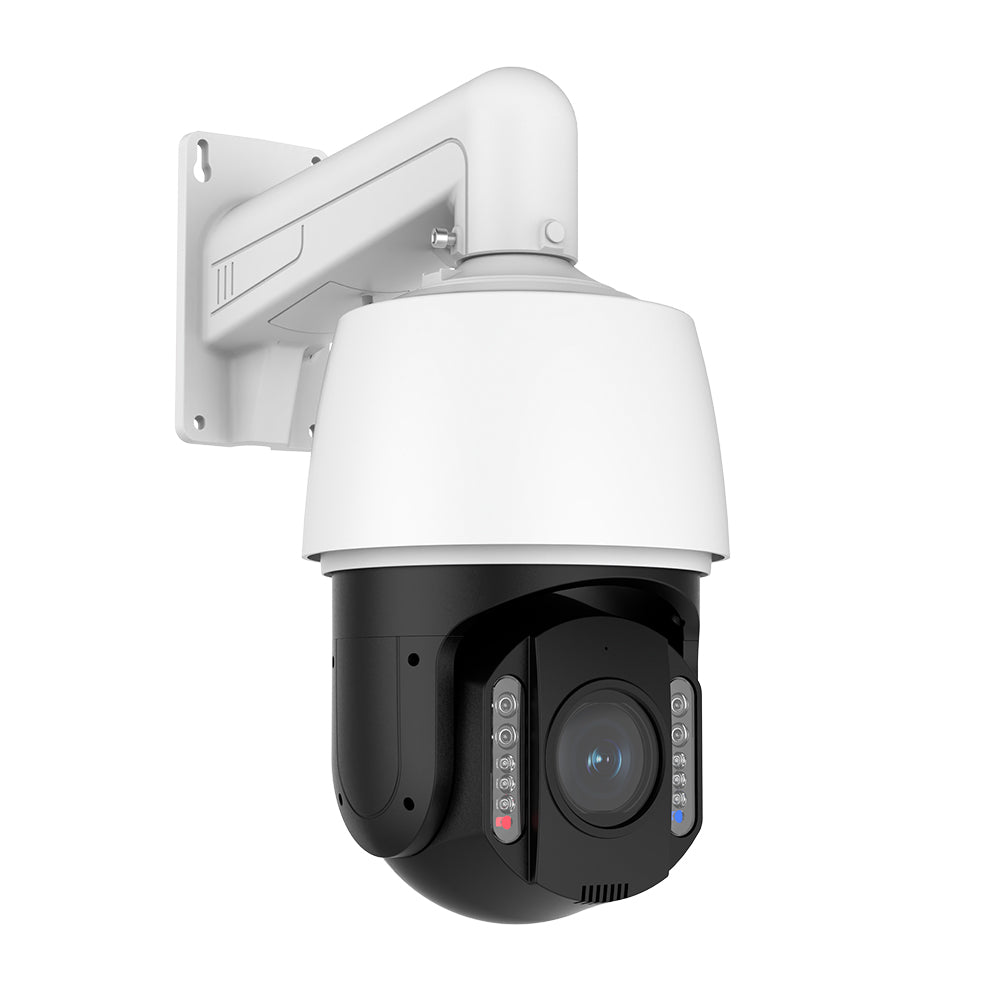

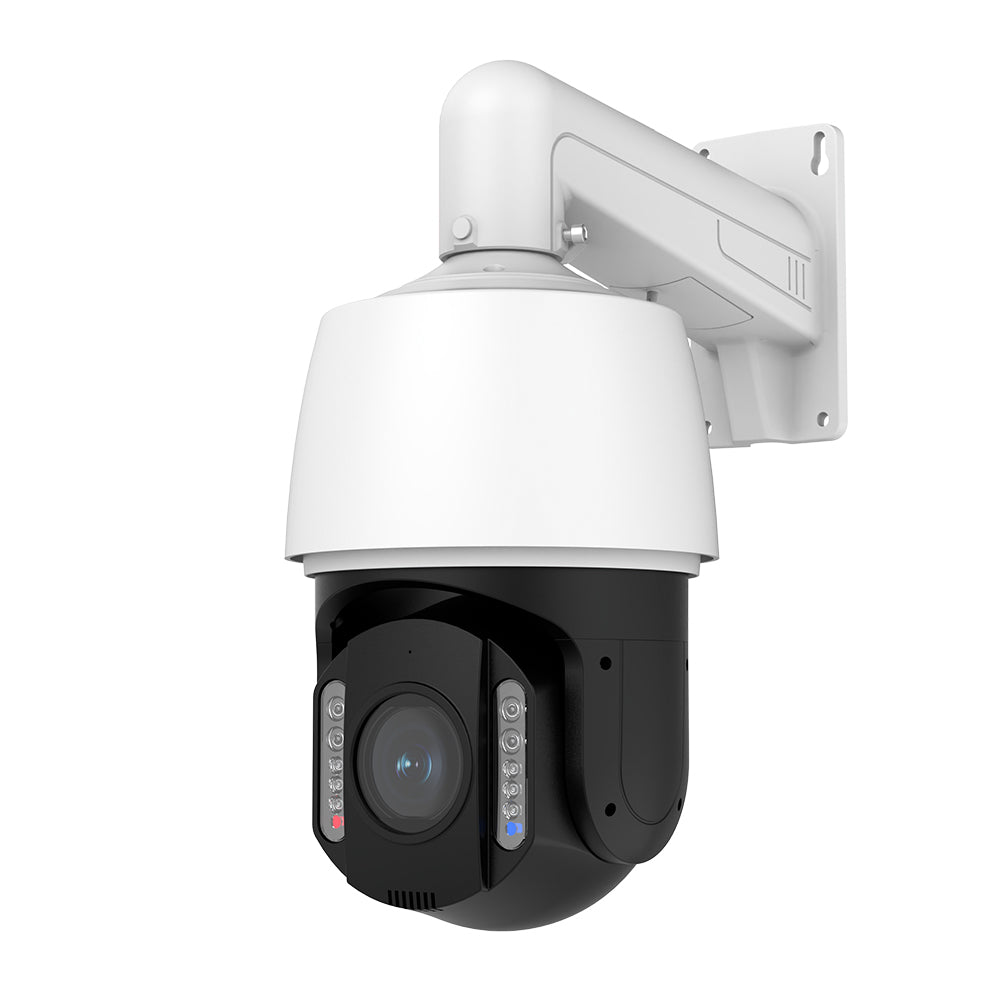

GL-178CD37-S1P5X
7" 4K 37x Active Deterrence PTZ
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 8MP resolution
- 37× optical zoom and 16× digital zoom
- Built-in Microphone and Speaker
- Dual sources illumination
- Deep learning algorithm
- Support audio and light alarm with built in red and blue flashing light
GL-178CD37-S1P5X
7" 4K 37x Active Deterrence PTZ
4K
Solar Power
Edge System
New
PAY WITH EASE
| Model Name | GL-178CD37-S1P5X |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Max. Resolution | 8MP 3840(H)x2160(V) |
| Min. Illumination | Color: 0.0005Lux @ (F1.6, AGC ON), B/W: 0 lux with light |
| Shutter Speed | 1/5s to 1/20000s |
| Day & Night | Auto Switch |
| Zoom | 37 × optical, 16 × digital |
| Lens | |
| Focal Length | 5.5 mm to 202 mm |
| Angle of View | Horizontal: 60° to 2.31°, Vertical: 35.5° to 1.3°, Diagonal: 67.5° to 2.65° |
| Aperture | Max. F1.6 |
| Focus | Auto, semi-auto, manual |
| Illuminator | |
| Supplement Light Range | White light: up to 25 m，IR: up to 200m |
| Supplement Light Type | Hybrid (IR and White Light) |
| PTZ | |
| Movement Range(Pan) | 360° |
| Movement Range(Tilt) | -20° to 90° (auto flip) |
| Pan Speed | configurable from 0.6° to 200°/s; preset speed: 200°/s |
| Tilt Speed | configurable from 0.6° to 90°/s; preset speed 100°/s |
| Presets | 255 |
| Patrol Scan | 4 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-Off Memory | Yes |
| 3D Positioning | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (3840x2160/3072x1728/2592x1944/2592x1520/2304x1296/1920x1080/1280x960/1280x720); 60 Hz: 30 fps (3840x2160/3072x1728/2592x1944/2592x1520/2304x1296/1920x1080/1280x960/1280x720); |
| Sub-Stream | 50 Hz: 25 fps (1920x1080/1280x720/640x480/320x240); 60 Hz: 30 fps (1920x1080/1280x720/640x480/320x240); |
| Third Stream | 50 Hz: 25 fps (640x480/320x240); 60 Hz: 30 fps (640x480/320x240); |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG; Third stream: H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 8kbps to 16384 kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region Of Interest (ROI) | 8 |
| Audio | |
| Audio Compression | G.711A/G.711U |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP |
| API | Onvif ( Profile M,Profile S, Profile G, Profile T),Http API |
| Simultaneous | Live View Up to 14 channels |
| User/Host | Up to 15 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings |
| Client | VMS |
| Web Browser | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
| Defog | Digital defog |
| Digital Image Stabilization | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser |
| Privacy | 4 privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Alarm | 1 input, 1 output |
| Audio | 1 input (line in)，1 output (line out)；Built-in Microphone |
| Reset | yes |
| Rs485 Interface | Control by Joystick controller(Only used PTZ function) |
| Event | |
| Basic Event | Motion detection, video tampering alarm, alarm input and output,Soud detection |
| Deep Learning Function | Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Intrusion detection, Region entrance detection, Region exiting detection, License plate Recognition |
| Smart Tracking | auto-tracking |
| Alarm Linkage | Upload to FTP, send email, trigger alarm output, trigger recording |
| General | |
| Power | 36VDC/24VAC/POE++ , max. 44.80W |
| Operating Condition | -30 °C to 60 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Material | Metal |
| Dimension | Ø 206.4 mm × 337.8 mm (Ø 8.13" × 13.3") |
| Weight | Approx. 5.27 kg (11.6lb) |
| Approval | |
| Protection | IP67, IK10 |
