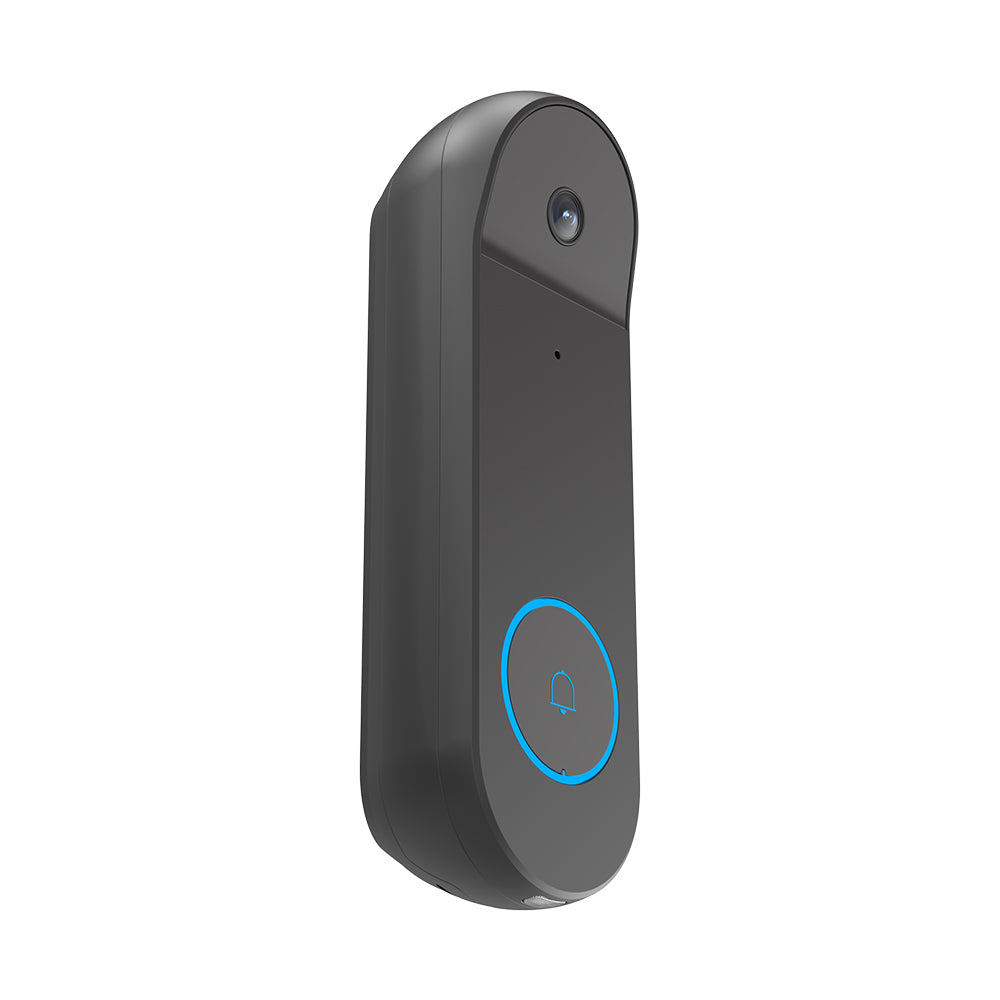

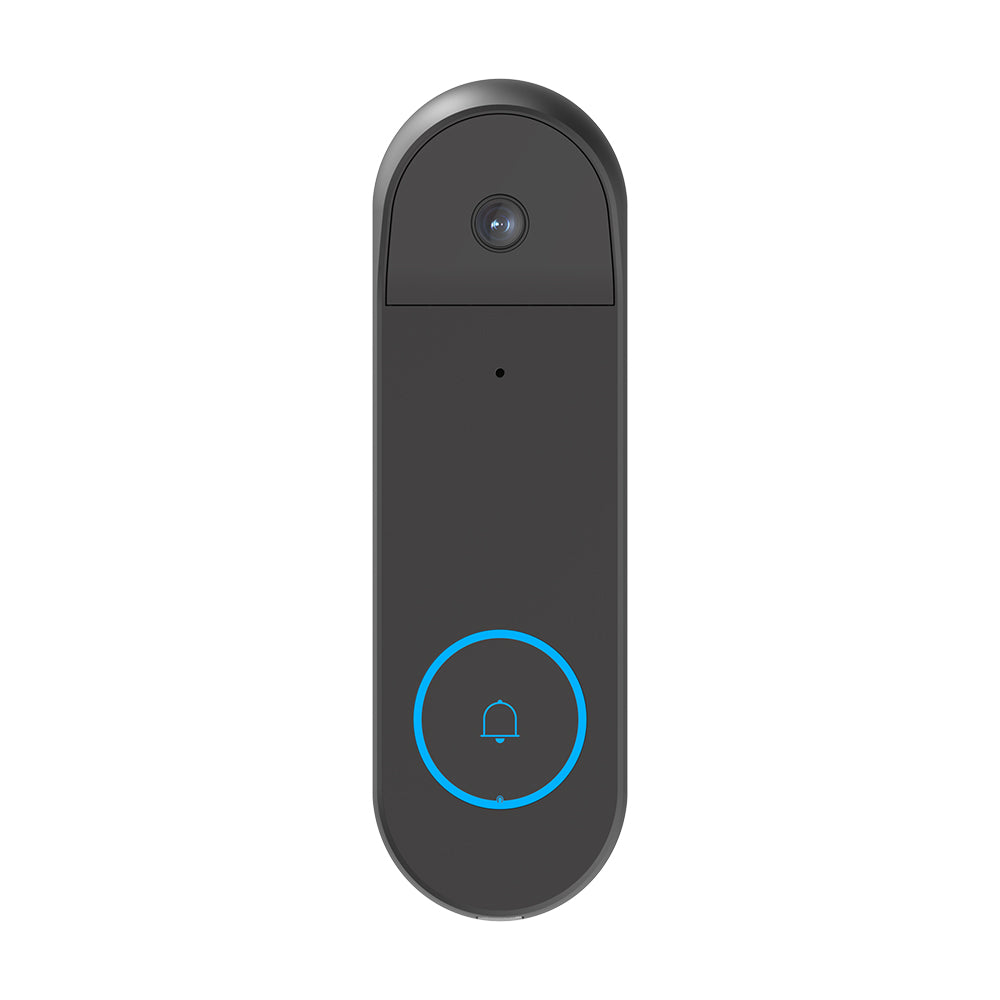

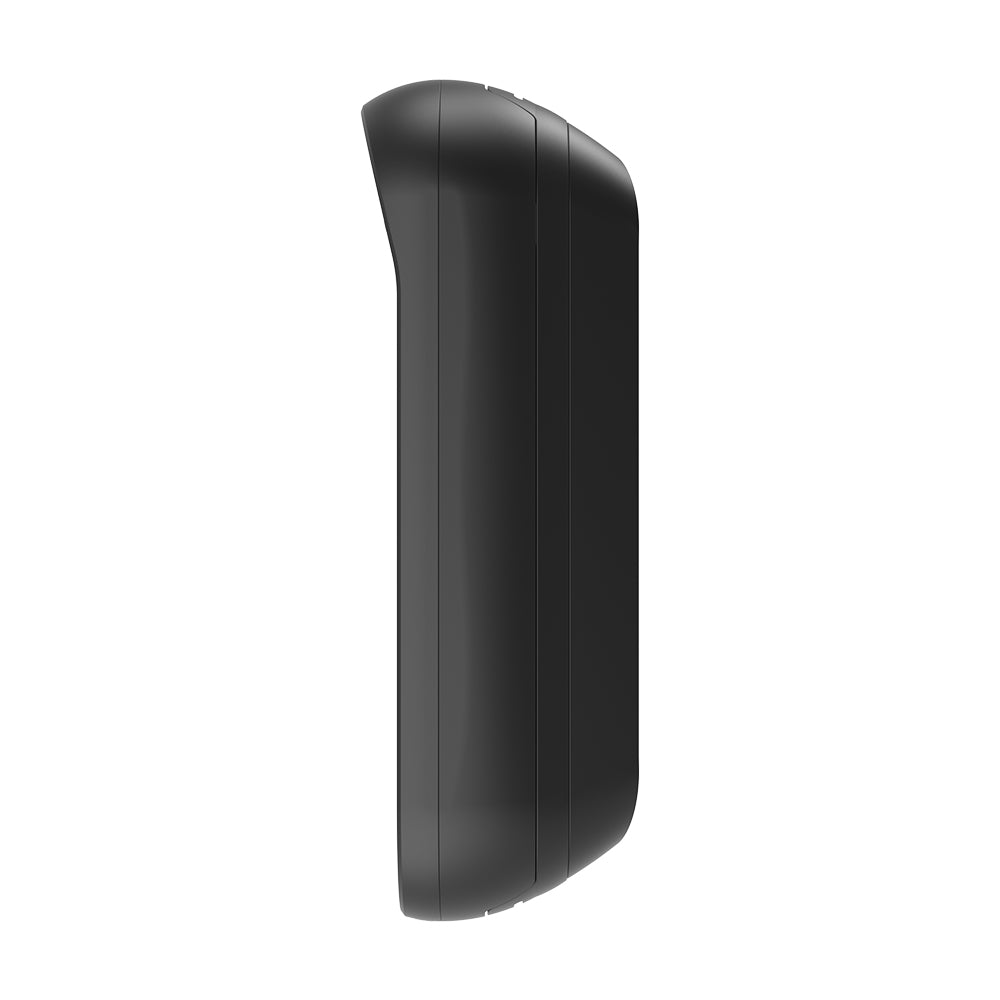

GL-475DG-N1C1NZ
5MP Wi-Fi PoE Video Doorbell Camera
- Person, Loitering & Package Detection
- 2-Way Talk, Event-activated Nightlight
- Full Head to Toe View (3:4) with unique outward leaning design
- Flexible Storage Options, recordings on NVR or MicroSD card (up to 512GB)
- With chime kit & wireless chime
- Supports standard PoE power supply
GL-475DG-N1C1NZ
5MP Wi-Fi PoE Video Doorbell Camera
4K
Solar Power
Edge System
New
- Person, Loitering & Package Detection
- 2-Way Talk, Event-activated Nightlight
- Full Head to Toe View (3:4) with unique outward leaning design
- Flexible Storage Options, recordings on NVR or MicroSD card (up to 512GB)
- With chime kit & wireless chime
- Supports standard PoE power supply
PAY WITH EASE
| Model | GL-475DG-N1C1NZ |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Image Size | 1944 × 2592 |
| Electronic Shutter | 1/5s ~ 1/200000s |
| IRIS Type | Fixed IRIS |
| MIN. Illumination | 0 lux (white LED ON) |
| Lens | 2.1mm @F2.0; Vertical FOV:132°，Horizontal FOV: 96°, Diagonal FOV: 163° |
| Lens Mount | M8 |
| WDR | Yes |
| BLC | Yes |
| HLC | Yes |
| Image | |
| Video Compression | H.265/H.264/MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Bit rate Type | VBR/CBR |
| Bit Rate | 256Kbps ~ 6Mbps |
| Resolution | 1944 x 2592, 1800 x 2400, 960 x 1280 |
| Main Stream | 50/60Hz: 20fps @ 1944 x 2592,1800 x 2400（Default), |
| Sub Stream | 50/60Hz: 20fps @ 960 x 1280 |
| Image Setting | Saturation, hue, brightness, contrast, sharpness,3D NR, |
| Audio Compression | G711A/U |
| Interfaces | |
| Network | 100M RJ45 |
| Audio | Built-in MIC×1, built-in speaker×1 |
| Reset Button | Yes |
| Storage | 1CH built-in micro SD card slot, up to 512GB |
| WiFi | Supports 2.4G/5G WiFi |
| Doorbell Button | Yes |
| Indicator | Yes |
| Function | |
| Remote Monitoring | Web client/CMS remote control/Moblie App |
| Online Connection | Supports simultaneous monitoring for up to 5 users |
| Supports multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, DHCP, NTP, RTSP, DDNS, SMTP, UPnP, HTTPS, HTTP |
| Interface Protocol | ONVIF |
| Storage | Micro SD card storage |
| Intelligent Analytics | Humen Detection, Package Detection, Loitering Detection |
| General Function | video mask, Motion |
| White Light Distance | 1m |
| IR Light Distance | 3m |
| Ingress Protection | IP65 |
| Others | |
| Power | AC/DC 16-24 V |
| PoE Power Supply | Yes |
| Power Consumption | Max.9.84W |
| Working Environment | -25℃~55℃, Humidity: less than 90% (non-condensing) |
| Dimensions(mm) | 146x46x30mm (5.75"x1.81"x1.18") |
| Weight (net) | 115.3g |
| Installation | Wall mounting(Mounting Bracket，Angled Bracket) |

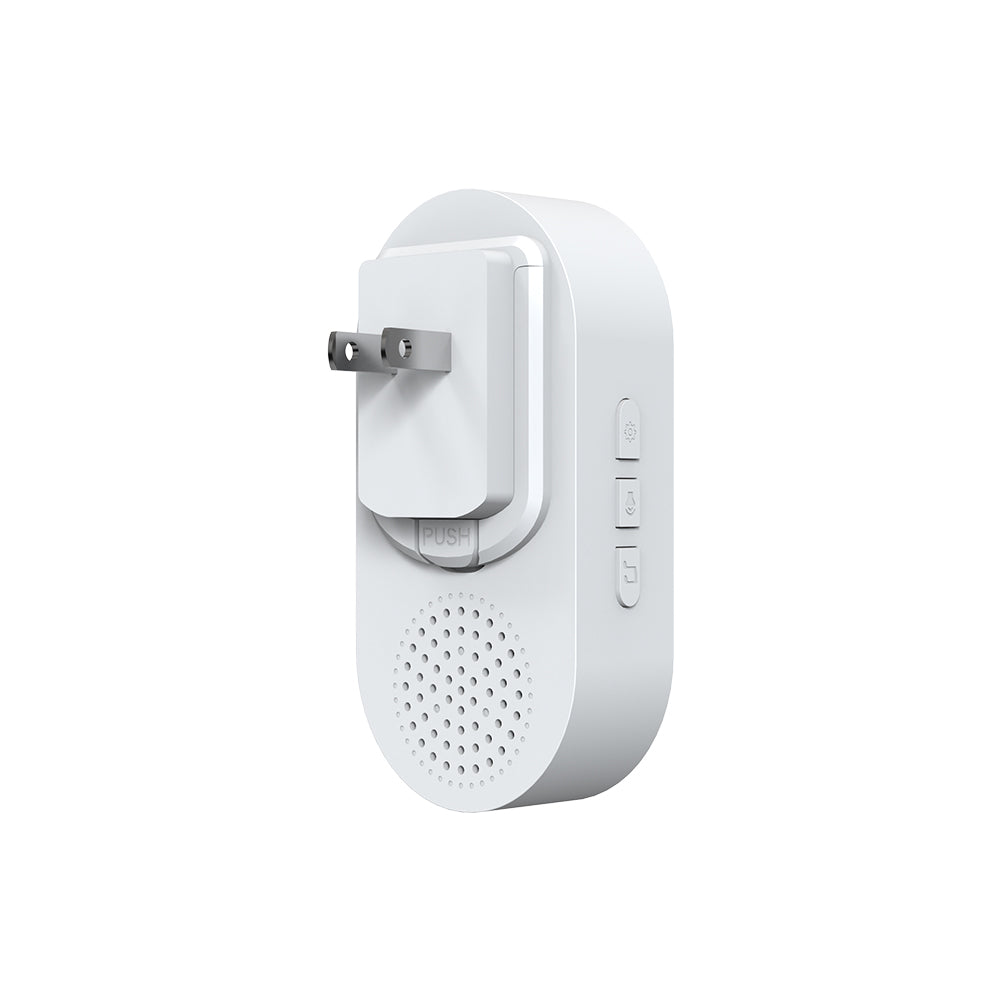

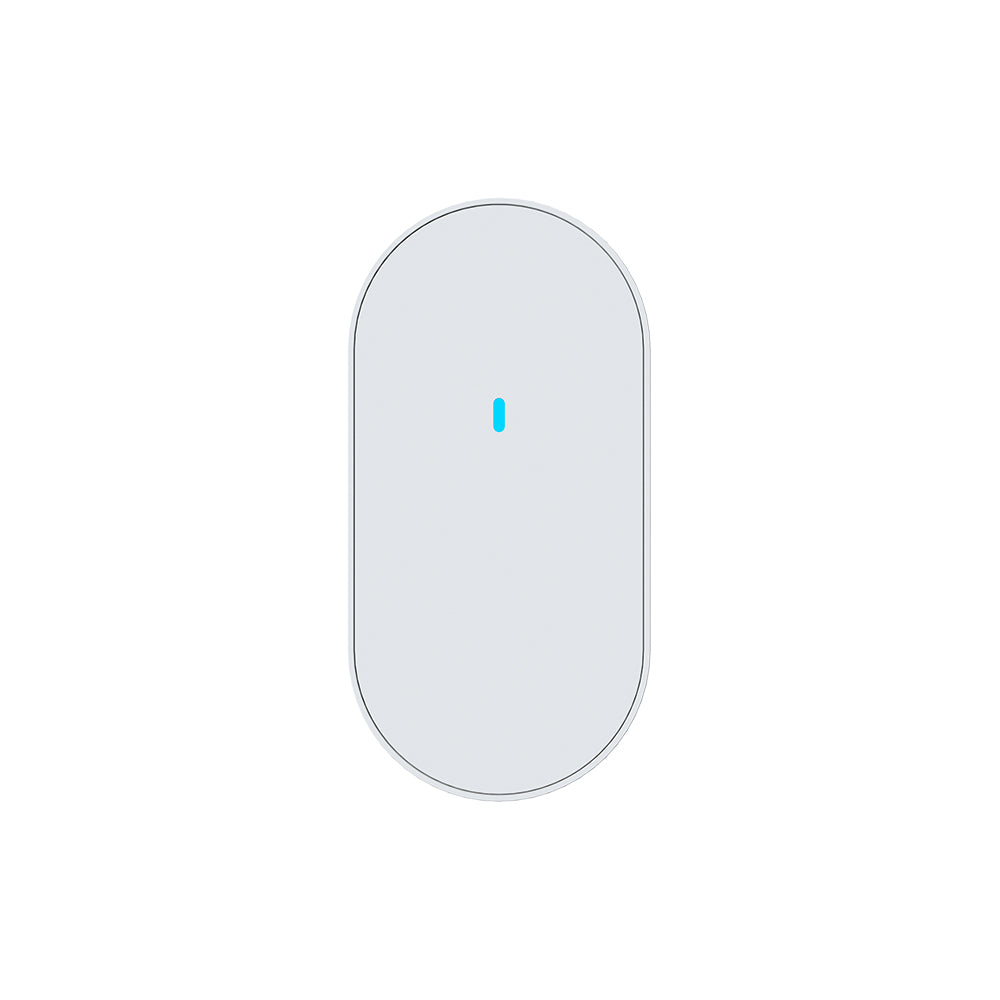

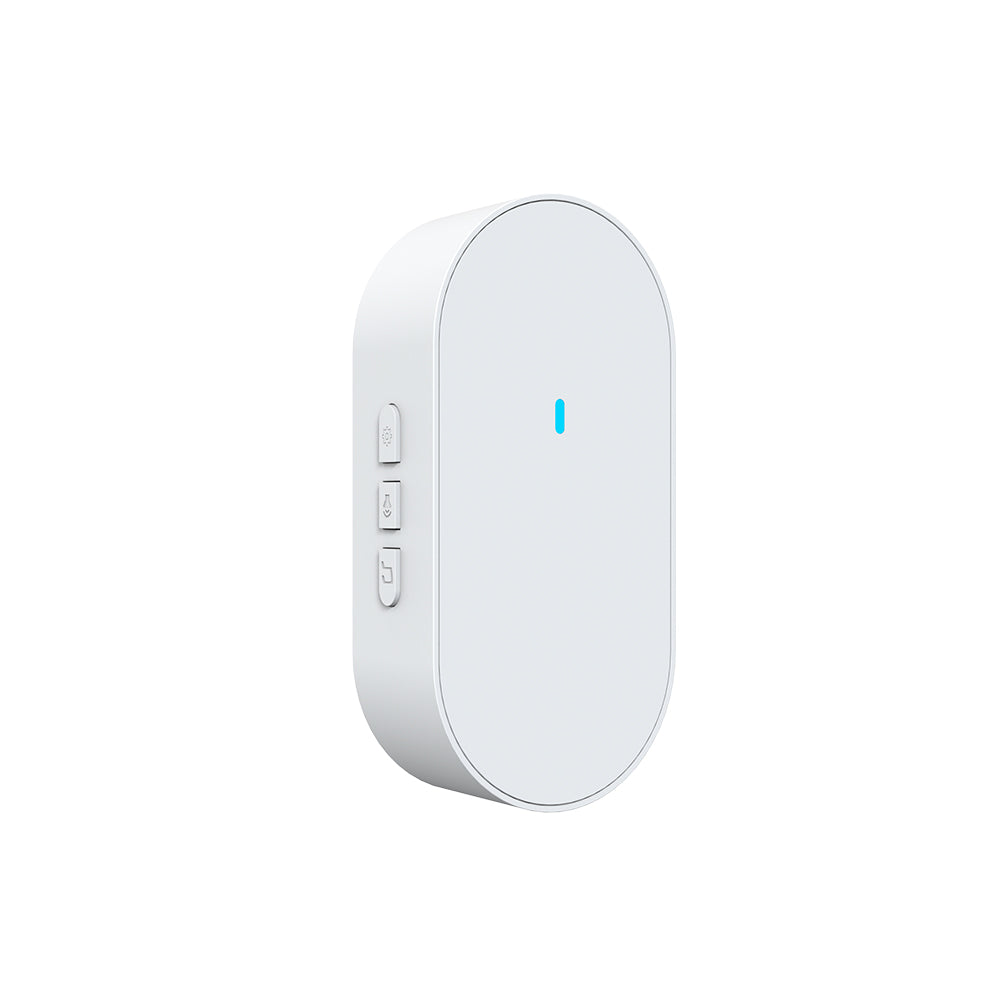

| Wireless Chime | |
| Model | GL-DDC-A |
| General | |
| Input | AC 100~240 V; 50~60 Hz |
| Transmission Mode | RF 433 Mhz |
| Button | Setting up/Selecting ringtones/Adjusting volume |
| Dimensions | 107x54x39mm(4.21"x2.13"x1.54") |
