X2106

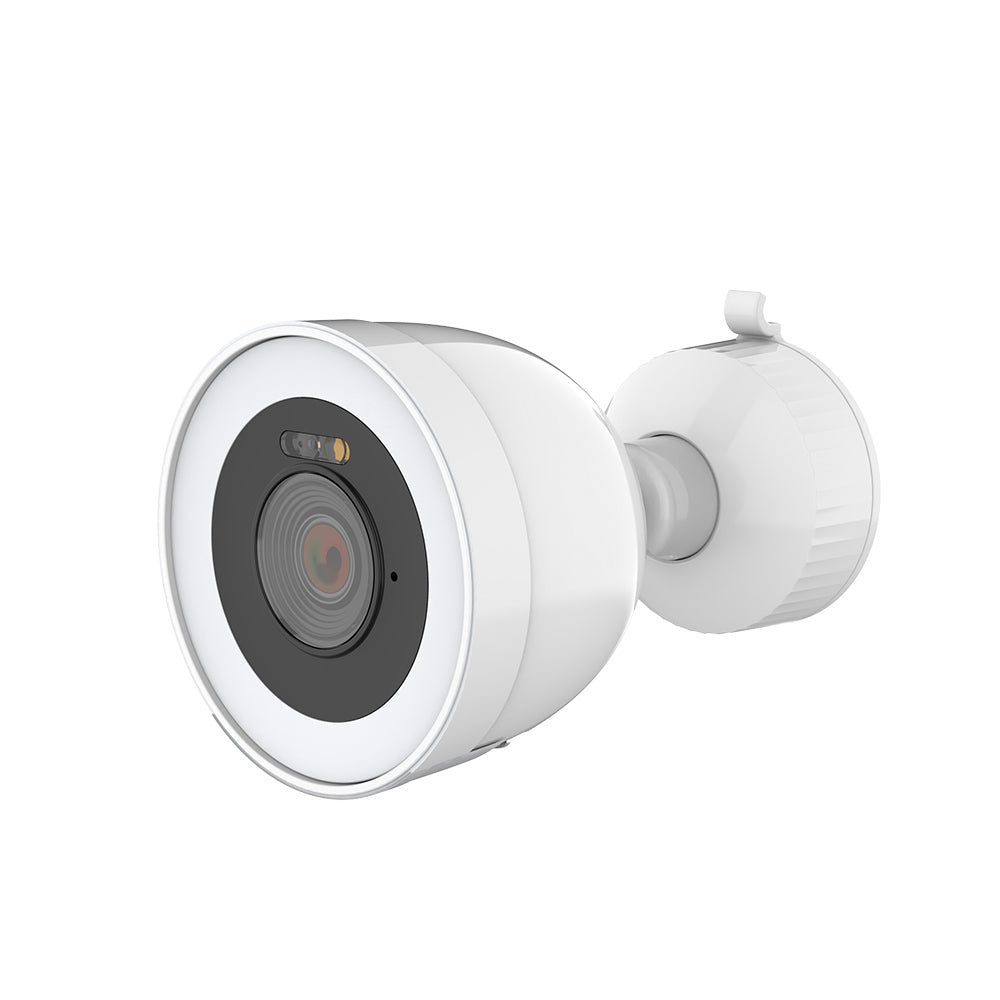

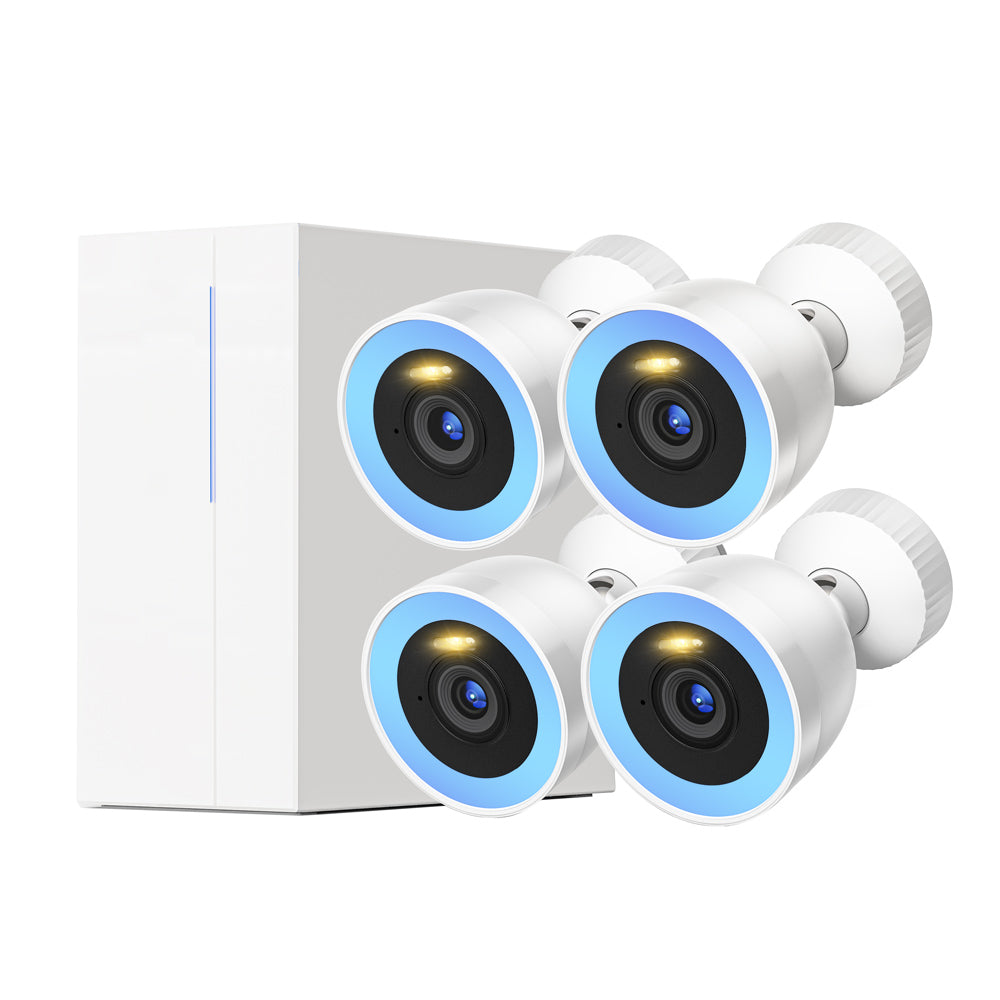

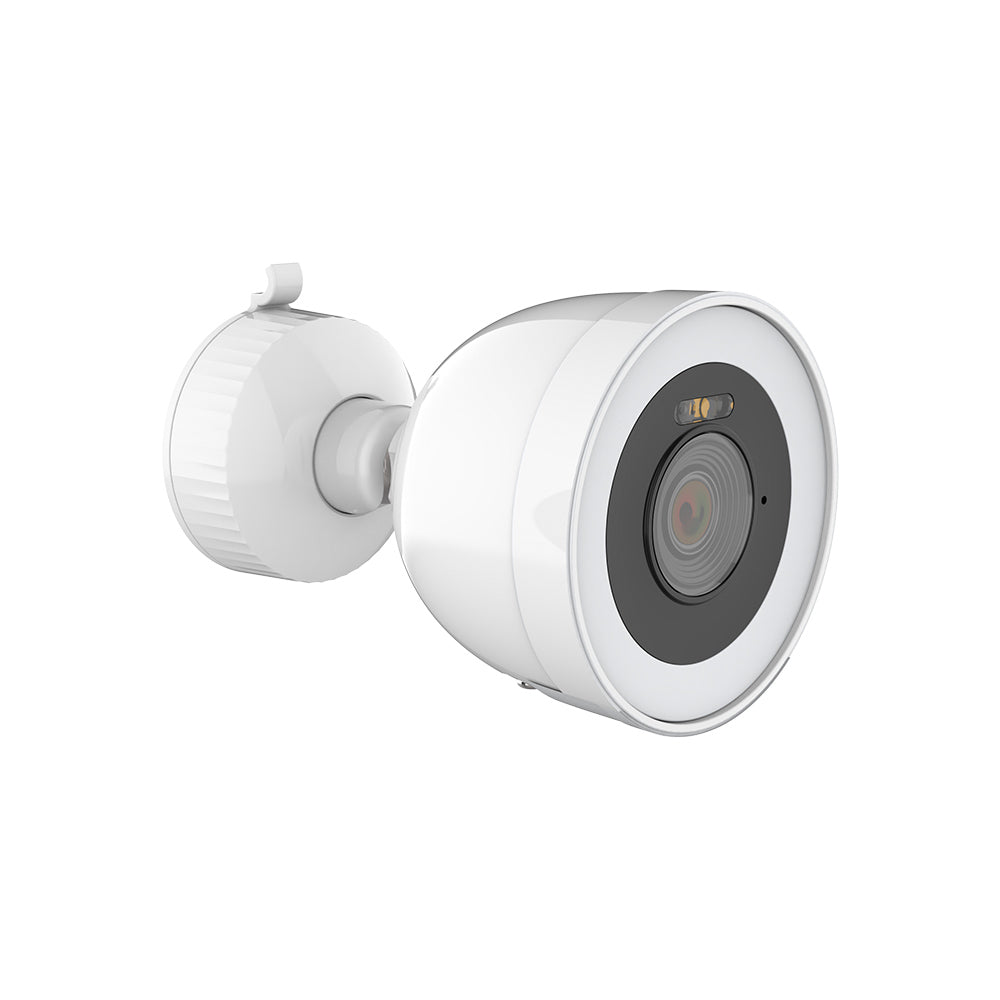

4K PoE Bullet Camera System
- Resolution: 4K
- F1.0 large aperture lens, full-color night vision
- Sound and light alarm with red and blue light, Proactive Deterrent, Crime Prevention
- Human-vehicle intelligent detection, PID/LCD/CC AI function
- An ethernet cable with power and data, easily installation
- 2.8mm lens, large field of view
- Power over Ethernet - No power cable hassle
X2106
4K PoE Bullet Camera System
4K
Solar Power
Edge System
New
PAY WITH EASE
| Model Name | GLN-1908AAC-8P | ||
| Video | Resolution | 8MP,4MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) | |
| Recording Bandwidth | Inputs | 50Mbps | |
| out | 48Mbps | ||
| Performance | |||
| Live/Playback | Compression | Audio: G.711a Video : H.264/H.265 |
|
| Frame rate | 4K:30fps 4MP:60fps 2MP:120fps Multi display resolution 720P, single channel up to 4K |
||
| AI | Person/ Vehicle/ PID/ LCD/ CC | ||
| Playback | Max 8CH playback | ||
| VMS | Support | ||
| Mobile viewer | Support | ||
| Interface | |||
| P/W Reset | Reset | Support | |
| Video Output | HDMI | 1 HDMI Port（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/EDID） | |
| Connections | POE | 8*RJ45、 802.3at/af | |
| Ethernet | 1 RJ45 10/100 Base-T | ||
| Status Leds | Power: RED; / NETWORK: BLUE | ||
| USB | USB2.0*2 | ||
| HDD | 1 SATA HDD, up to 16TB | ||
| General | |||
| OSD Language | English/ IT/ DE/ FR/ ES/ RU/ UKR | ||
| Electrical | Input Voltage/Current | DC48V/1.5A | |
| Power consumption (excluding hard disk) | 6W | ||
| Environmental | Operating Temperature/Humidity | Temperature :0°C~+40°C (32°F ~ 104°F) Humidity : Less than 90%RH |
|
| Product Model | GL-328CW-N1E2BY | |
| Parameter | Function | Specification |
| Image Sensor | 1/2.7" | |
| Pixel | 8MP | |
| Resolution | 3840H*2160V | |
| Signal System | PAL/NTSC | |
| Lens Focal Length | 2.8mm | |
| Lens Aperture | F1.0 | |
| Field of view | FOV : 130° | |
| Minimum Illumination | Colour：0.05Lux @ (F1.0，AGC ON) Black and White：0.005Lux @ (F1.0，AGC ON) 0 Lux with IR |
|
| White Balance | Auto | |
| Gain Control | Auto | |
| Backlight Compensation | Supports | |
| Privacy Masking | Up to 4 Zones | |
| Wide Dynamic | Max. Support 120 dB | |
| Electronic Shutter | 1/5 - 1/20000 | |
| Video | Video Compression | H.264 / H.265 |
| Video Transmission | Dual stream support | |
| System Integration | Audio Input | Built-in 1X microphone |
| Audio Output | Built-in 1X 1W speaker | |
| Red and Blue Lights | 9 red lights, 9 blue lights, staggered layout | |
| PIR | N/A | |
| Network Interface | Tail cable with RJ45 network port, support 10/100Mbps network data, with POE | |
| SD card storage | Built-in SD card slot | |
| Reset button | Support, same location as SD card slot | |
| AI | AI Intelligence | Human/Vehicle Detection, PID, LCD, CC |
| Night Vision | Infrared light | 1x 2W Matrix Infrared Light |
| Infrared distance | 25m | |
| Warm light | 1x 2W Warm Light | |
| Full colour night vision | 20m | |
| General specification | IP Rating | IP67 |
| Operating Temperature and Humidity | -30℃~+60℃, Humidity <90% | |
| Body Material | Plastic rear casing and bracket, metal front casing | |
| Power Supply | PoE |
