GLN-1732AB-16P
32CH 16PoE 2HDDs Network Video Recorder
- Maximum support for 32 channels of 4K IP camera input，16 PoE channels
- H.265 encoding and decoding
- Supports standard ONVIF protocol
- With 2 Gigabit Ethernet ports

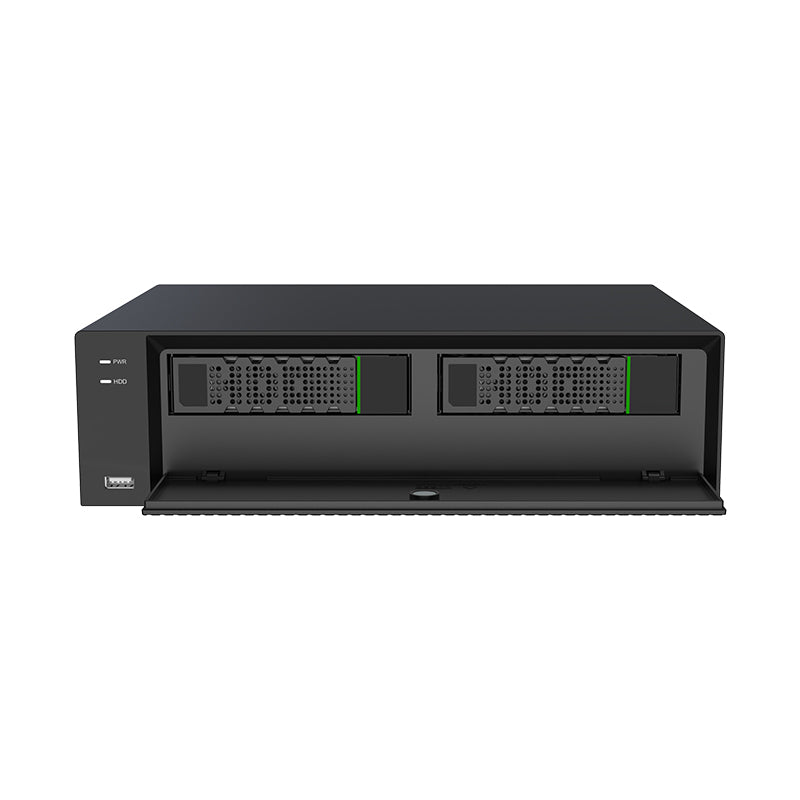

- With 2 internal HDD drive bays,and 1 external eSATA port
- 4 alarm inputs and 1 alarm outputs
- Supports intelligent analytics such as facial recognition, human detection, vehicle detection, license plate recognition, perimeter intrusion, and line crossing statistics
- Allows remote access from mobile devices and computers
- Supports external alarm devices and features RCA interface for voice intercom
GLN-1732AB-16P
32CH 16PoE 2HDDs Network Video Recorder
4K
Solar Power
Edge System
New
- Maximum support for 32 channels of 4K IP camera input，16 PoE channels
- H.265 encoding and decoding
- Supports standard ONVIF protocol
- With 2 Gigabit Ethernet ports
- With 2 internal HDD drive bays,and 1 external eSATA port
- 4 alarm inputs and 1 alarm outputs
- Supports intelligent analytics such as facial recognition, human detection, vehicle detection, license plate recognition, perimeter intrusion, and line crossing statistics
- Allows remote access from mobile devices and computers
- Supports external alarm devices and features RCA interface for voice intercom
PAY WITH EASE
| Model Name | GLN-1732AB-16P |
| Inputs Bandwidth | 320M |
| out Bandwidth | 320M |
| Performance | |
| Recording Resolution | 12 MP/8MP/5MP/4MP/3MP/1080p/720p |
| Recording Compression | Audio: G.711A/ G.711U Video : H.264/H.265/H.264+/H.265+ |
| Speed | 12MP:30fps 8MP:120fps 4MP:240fps 2MP:480fps |
| Playback | 12MP:2CH@15FPS 8MP:4CH@30FPS 4MP:8CH@30FPS 2MP:16CH@30FPS Max 16CH |
| Network | |
| WEB | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, UPnP, HTTP, HTTPS |
| API | Glory API/Onvif (profile S/G/T) |
| Voice command | Home Device : Google Assistant, Amazon Alexa |
| Interface | |
| P/W Reset | YES |
| VGA | 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ） |
| HDMI | 1 (1024*768,1280*720,1280*1024,1440*900,1600*1200,1920*1200,1920*1080,2560*1440(2K),3840*2160(4K) ) |
| Ethernet | 2 RJ45 100/1000 Base-T |
| PoE | 16*RJ45、 100 Base-T 802.3at/af |
| USB | USB2.0*1(front) USB3.0*1+USB2.0*1(rear) |
| Audio | 1 in / 1 out |
| E-sata | 1 |
| HDD | 2 SATA HDD, each up to 12TB |
| RS485 | 1 |
| Alarm Input/out | 4 in /1 out |
| General | |
| OSD Language | English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Hebrew/Turkish/Bulgarian/Arabic/Korean/ Japanese/Thai/Hindi/Romanian/Dutch/Polish/Persian/Hungarian/Chinese/Ukrainian |
| Dimension (WxDxH) | 290x224.5x85.2mm |
| Input Voltage/Current | 240W |
| Power consumption (excluding hard disk) | 12W |
| Operating Temperature/Humidity | Temperature : -10°C~+50°C (14°F ~ 122°F) Humidity : Less than 90%RH |
