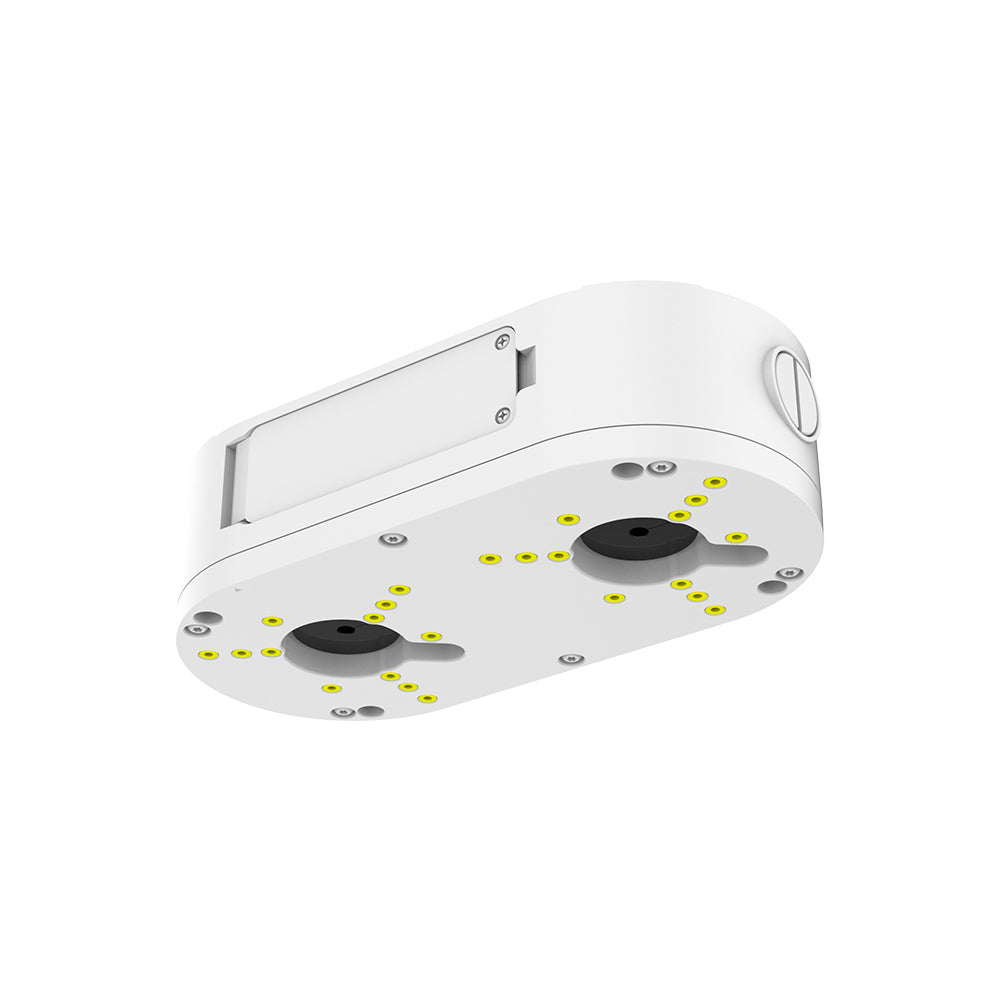

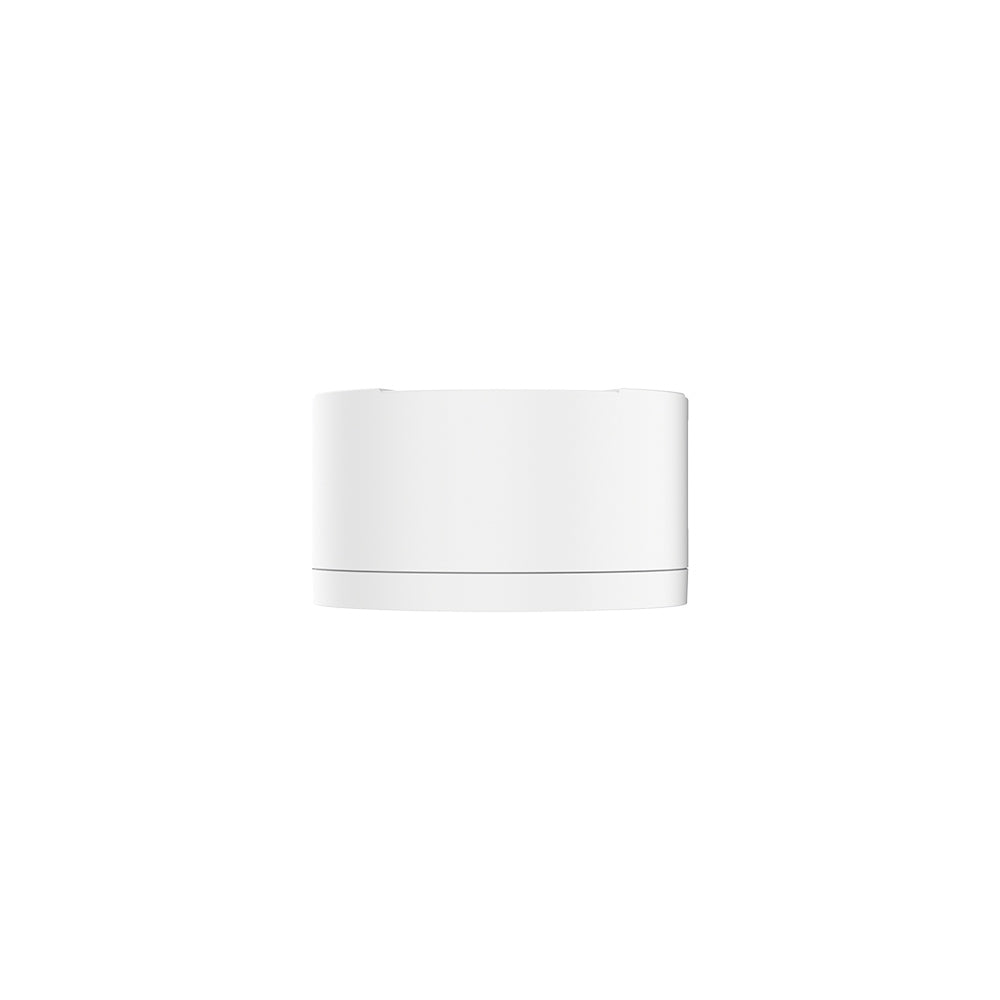

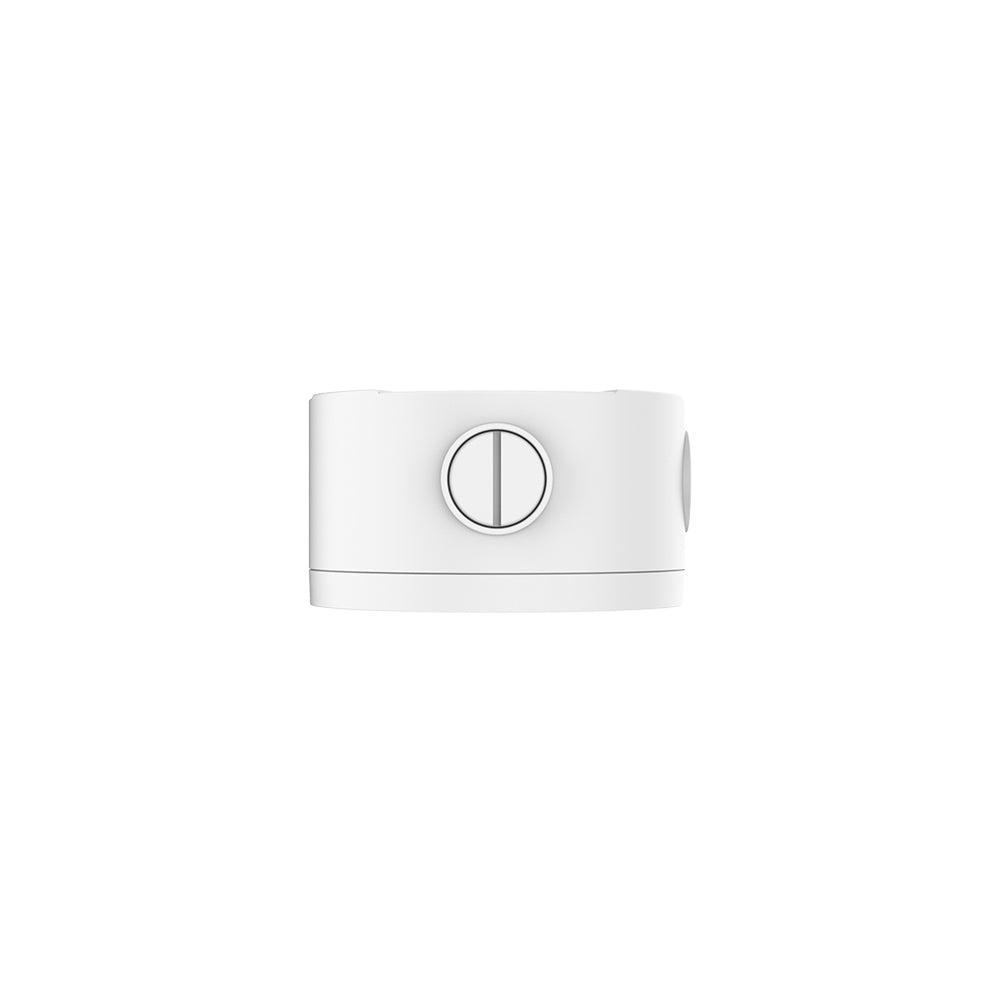

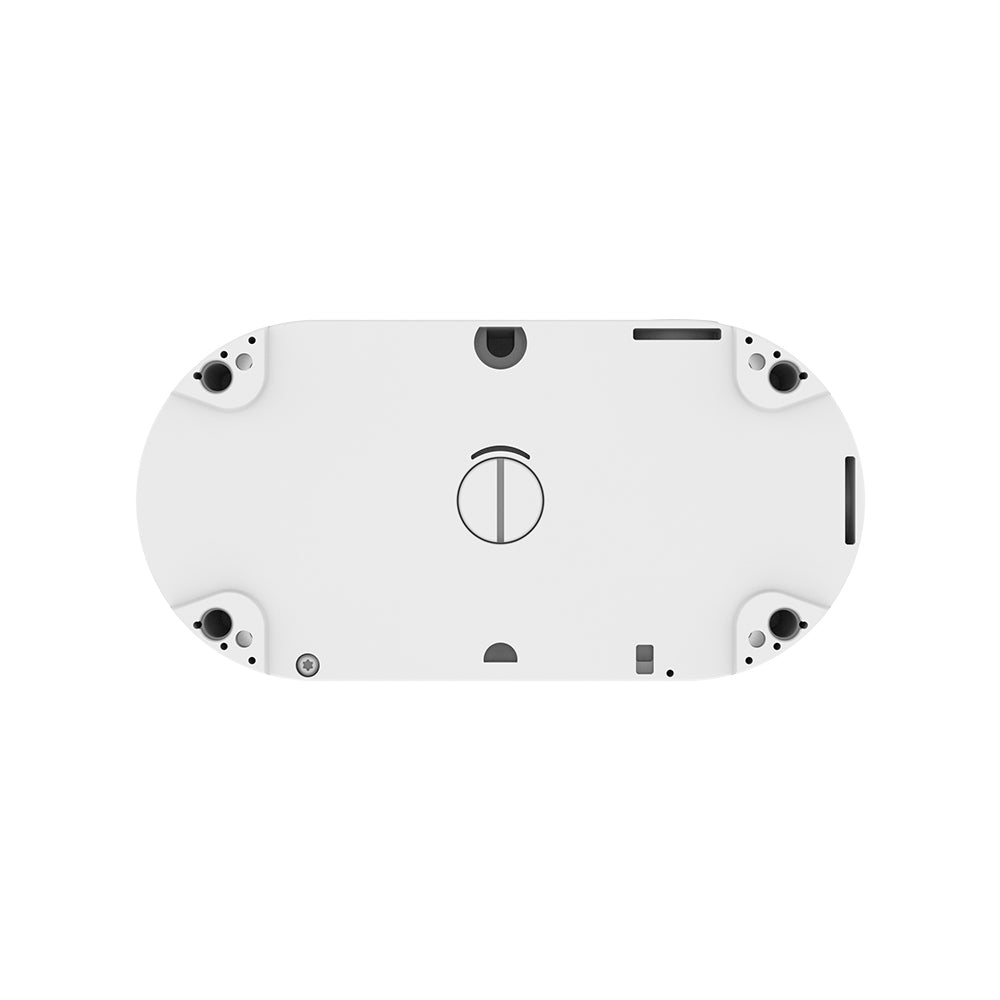

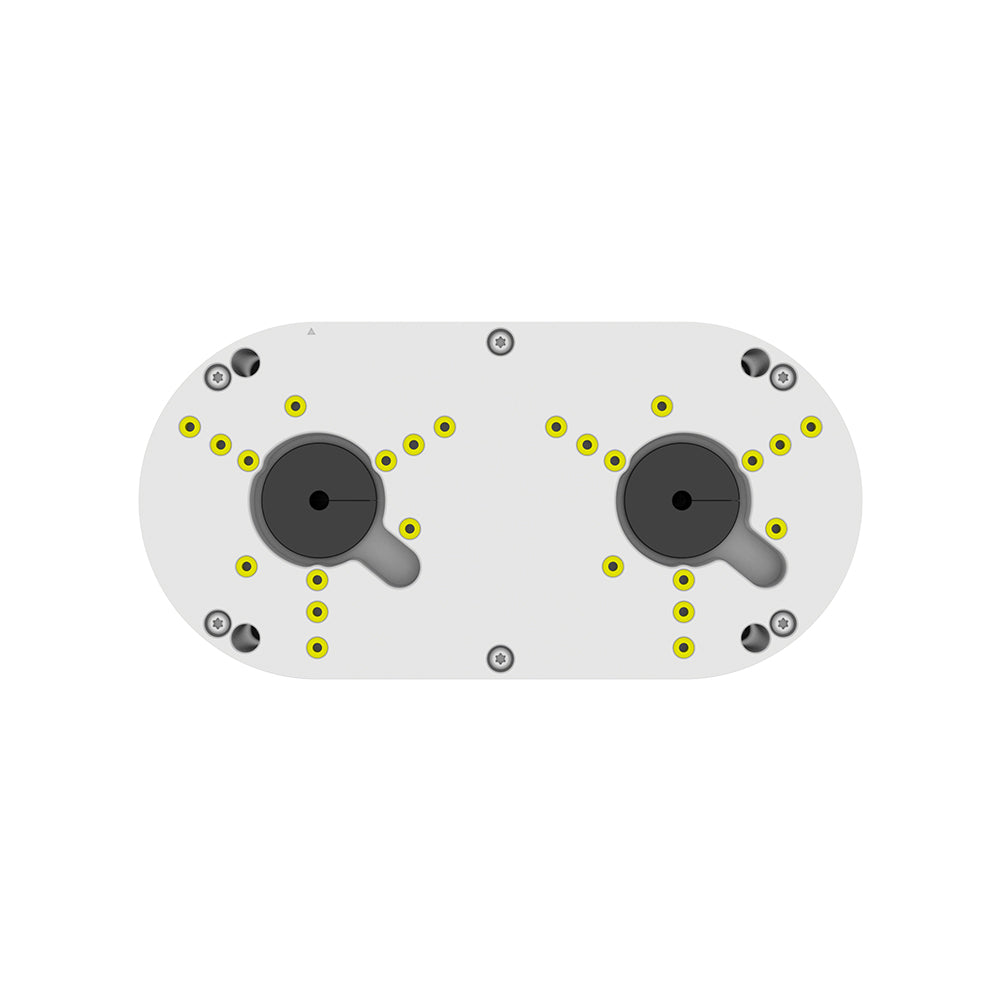

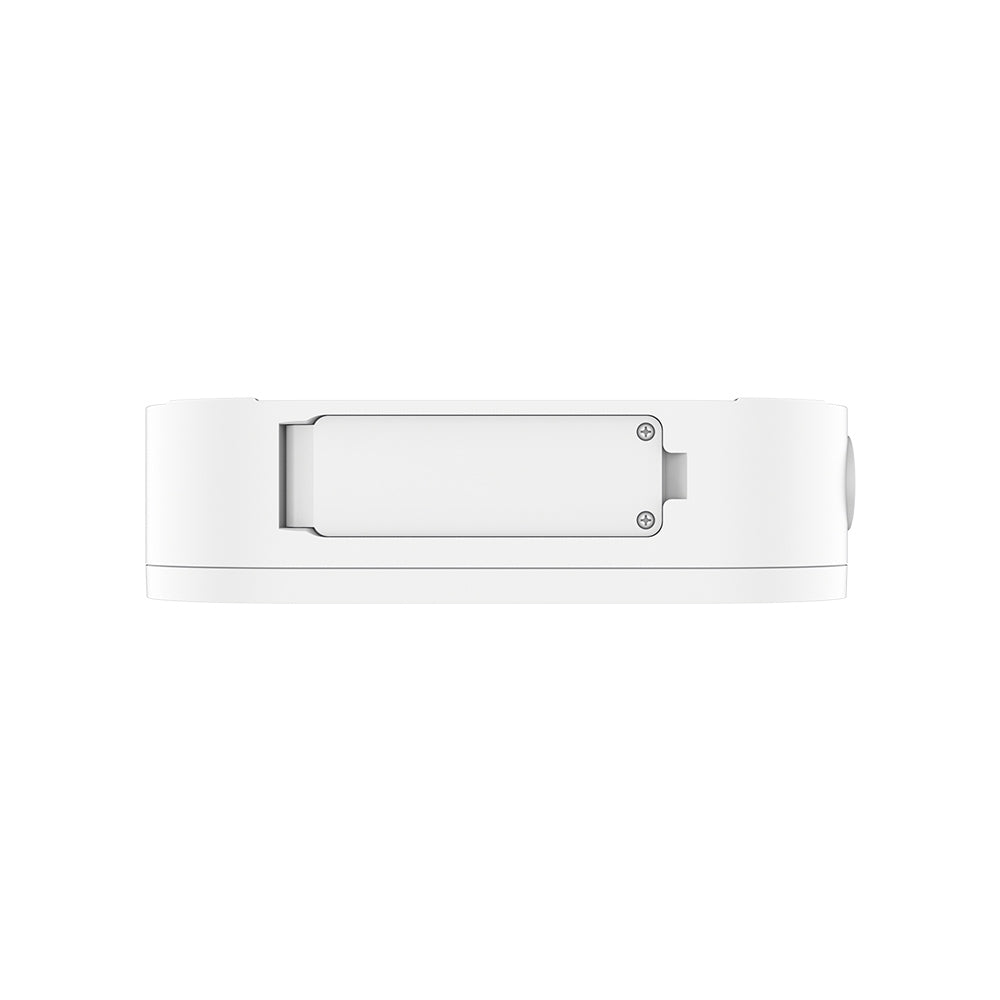

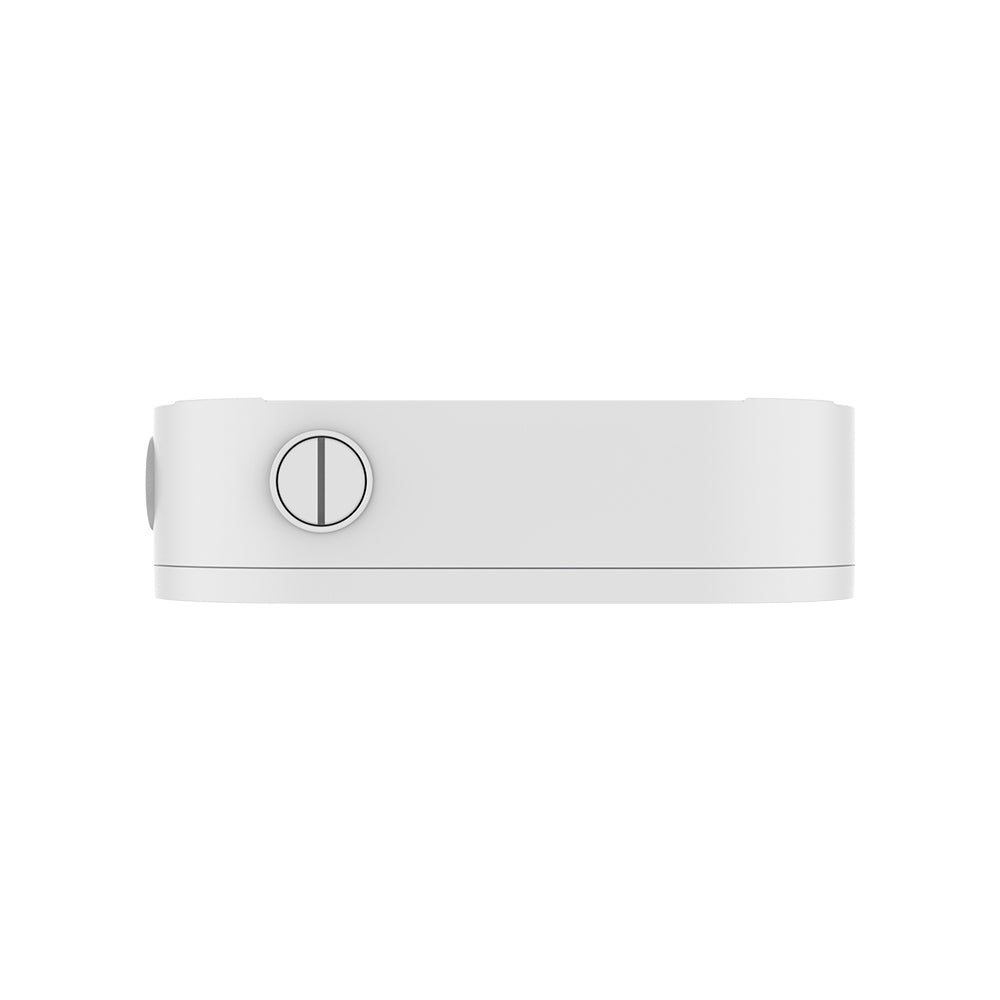

GL-CXH-SW02B
2CH PoE Switch Junction Box small size

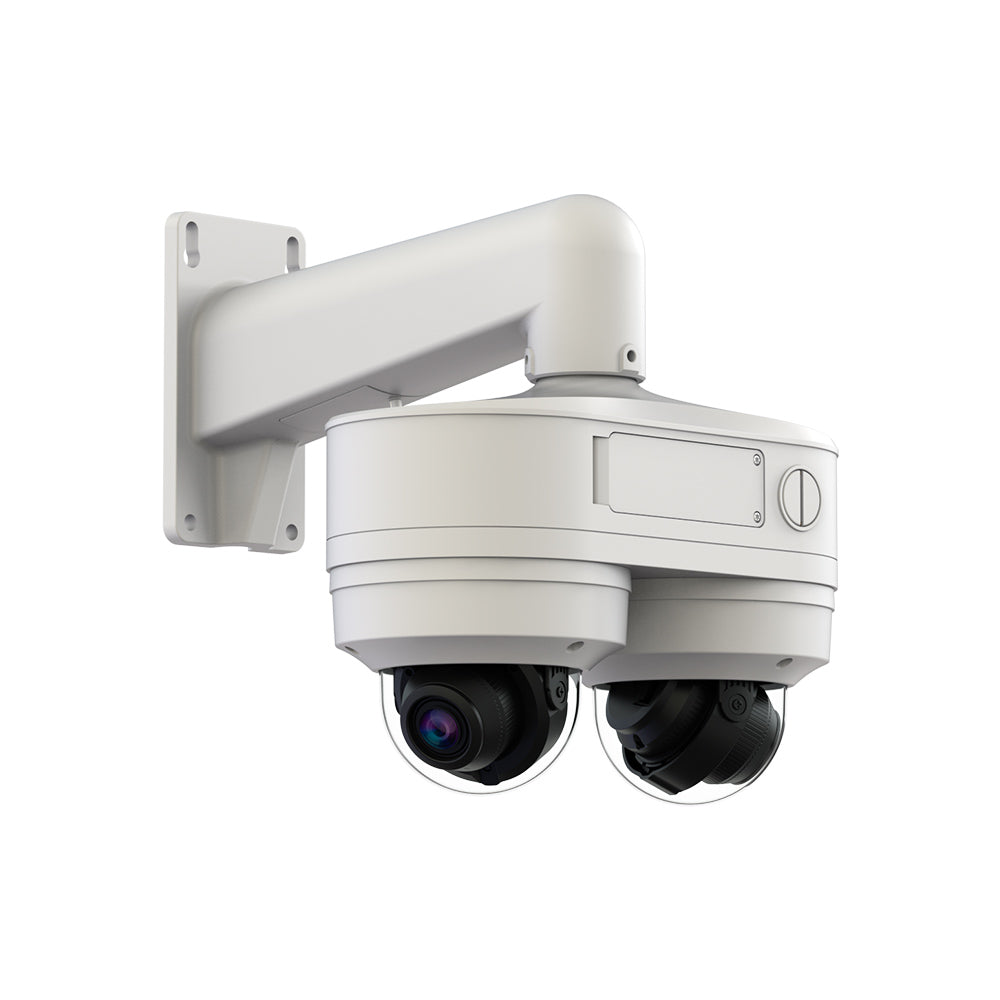

- Dual Cameras via One RJ45 Cable
- Built-in PoE Switch or PoE NVR
- Quick Search & Add Devices
- Compatible with Multiple Housings
- Compatible with Most Popular Brackets
GL-CXH-SW02B
2CH PoE Switch Junction Box small size
4K
Solar Power
Edge System
New
PAY WITH EASE
| Model name | GL-CXH-SW02B |
| Interfaces | LAN: 2*RJ45, 10/100M PoE; WAN: 1*RJ45, 10/100M PoE |
| Network Management | IEEE 802.3 |
| Mac | 3 |
| Uplink Port Rate | 100M |
| Downlink Port Rate | 100M |
| Exchange Capacity | 1Gbps |
| Packet Forwarding Rate | 0.744Mpps |
| Internal Cache | 768Kbits |
| PoE Standard | IEEE 802.3at/af |
| Maximum port power supply rate | 25W |
| Maximum power supply rate of switch | 30W |
| Maximum power consumption of switch | 5W |
| Shell | PA66+30%GF, IP66 |
| Installation Method | wall-mounted/ceiling-mounted |
| Dimension (WxDxH) | 240*120*70mm |
| Operating Temperature/Humidity | Temperature: -30°C~+60°C; Humidity : Less than 90%RH |
| Storage Temperature/Humidity | Temperature: -40°C~+85°C ; Humidity : Less than 90%RH |
| Surge Protection | 4KV |
