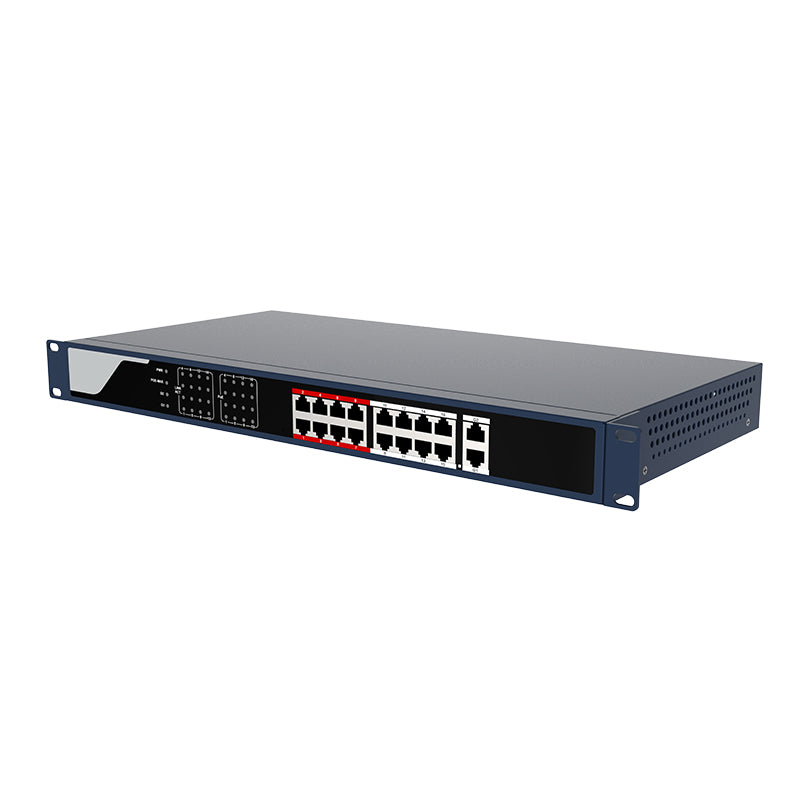

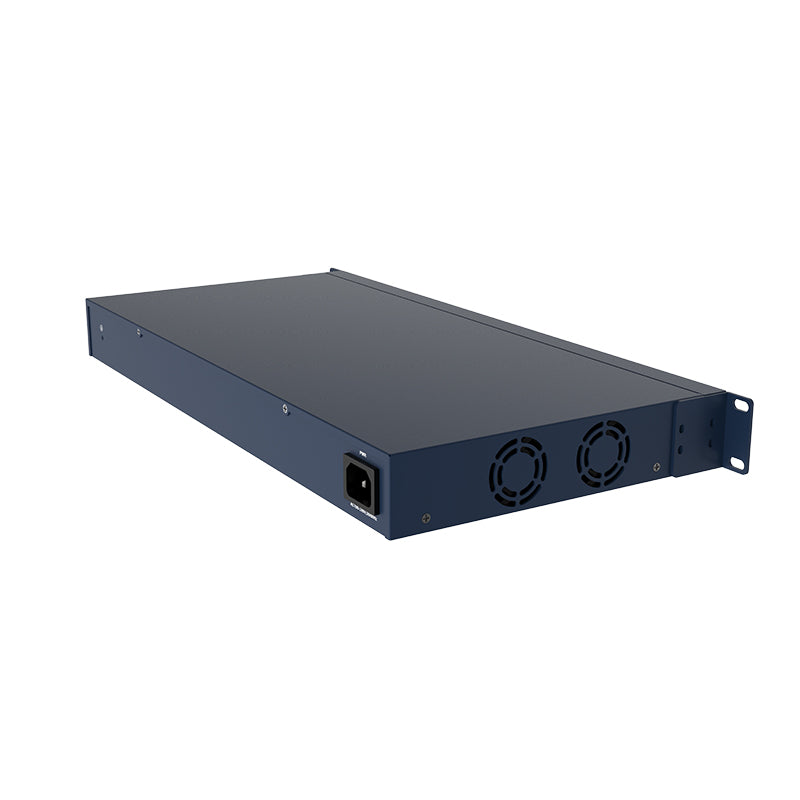

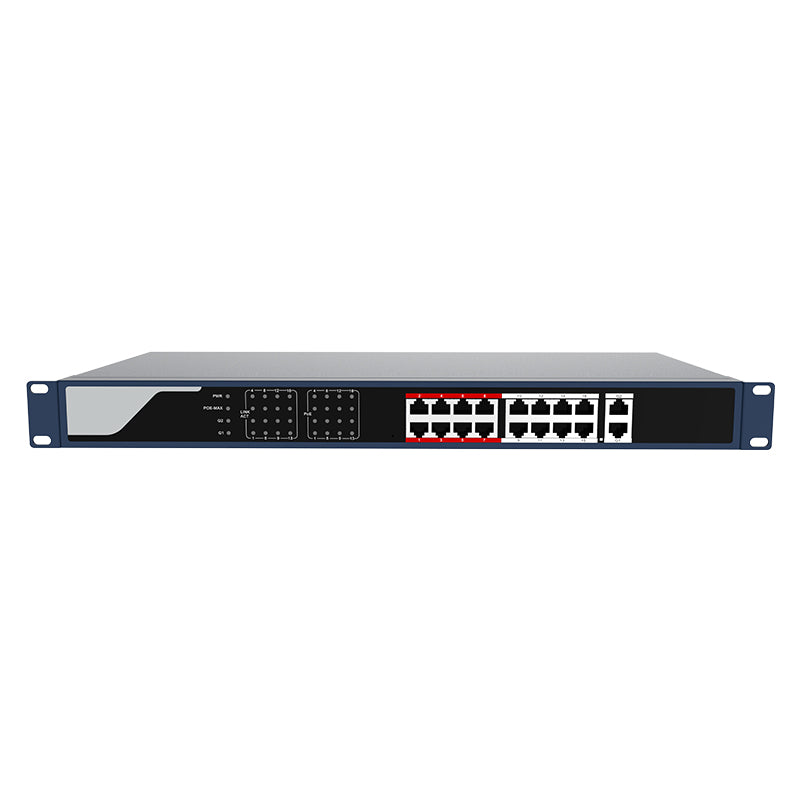

GL-SW-16
16 Port Smart Managed PoE Switch
- Smart Managed
- 16x10/100M POE+2x100/1000M Gigabit Ethernet
- IEEE 802.3\802.3u\802.3ab\802.3x\802.3z\802.3af\802.3at
- 250 meter long distance PoE transmission
- Support VMS connect, remote upgrade, recovering default parameteGL, viewing logs, configuring basic network parameteGL, Visualized Topology Management
GL-SW-16
16 Port Smart Managed PoE Switch
4K
Solar Power
Edge System
New
- Smart Managed
- 16x10/100M POE+2x100/1000M Gigabit Ethernet
- IEEE 802.3\802.3u\802.3ab\802.3x\802.3z\802.3af\802.3at
- 250 meter long distance PoE transmission
- Support VMS connect, remote upgrade, recovering default parameteGL, viewing logs, configuring basic network parameteGL, Visualized Topology Management
PAY WITH EASE
| Model Name | GL-SW-16P |
| Interfaces | 16x10/100M PoE+2x100/1000M Gigabit Ethernet |
| Network Management | Lite Manager(CMS connection ,POE power consumer statistics, parameter configuration,log checking, firmware update, network topology) |
| IEEE Standard | 802.3\802.3x\802.3u\802.3az |
| Uplink Rate (Individual Port) | 1000M |
| Downlink Rate (Individual Port) | 1000M |
| Exchange Capacity | 7.2Gbps |
| Packet Forwarding Rate | 5.36Mpps |
| Internal Cache | 2.75Mbits |
| PoE Standard | IEEE 802.3at/af |
| PoE Port | 1~16 |
| Extension Mode（EPoE） | 250 Meters |
| Max. Power (Individual Port) | 30W |
| Max. Power (All Ports) | 230W |
| Material | Metal |
| Weight | 2861.7g |
| Dimension (WxDxH) | 440*221*44mm |
| Operating Temperature/Humidity | Temperature: -10°C~+50°C; Humidity: Less than 90%RH |
| Storage Temperature/Humidity | Temperature: -40°C~+85°C; Humidity: Less than 90%RH |
| Power Specifications | 100~240VAC 50/60Hz Max4A 52V/4.8A 250W/G0493I(Gospower) |
| Surge Protection | 4KV |
